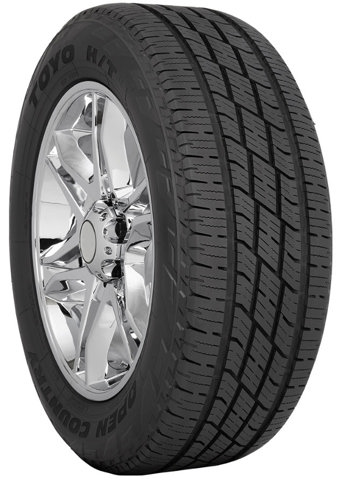

Highway All-Season Tire
Features and Benefits

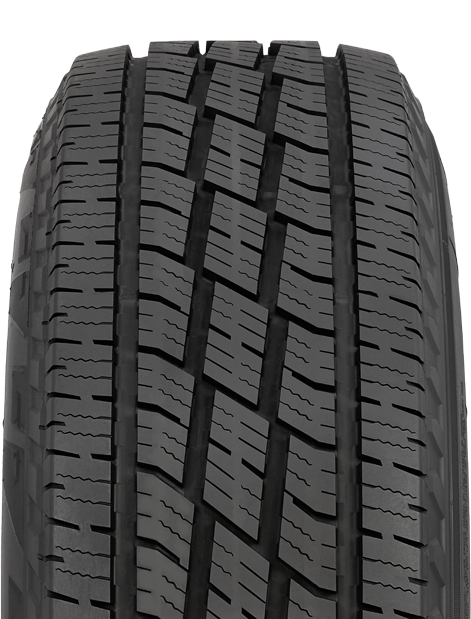

WEAR-RESISTANT TREAD COMPOUND

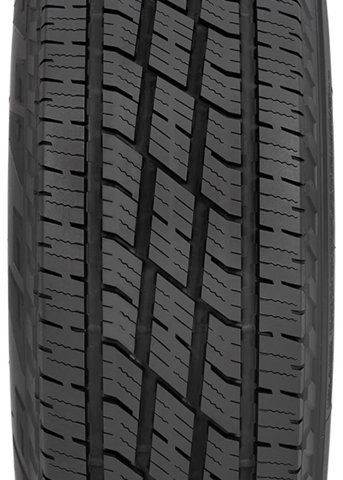

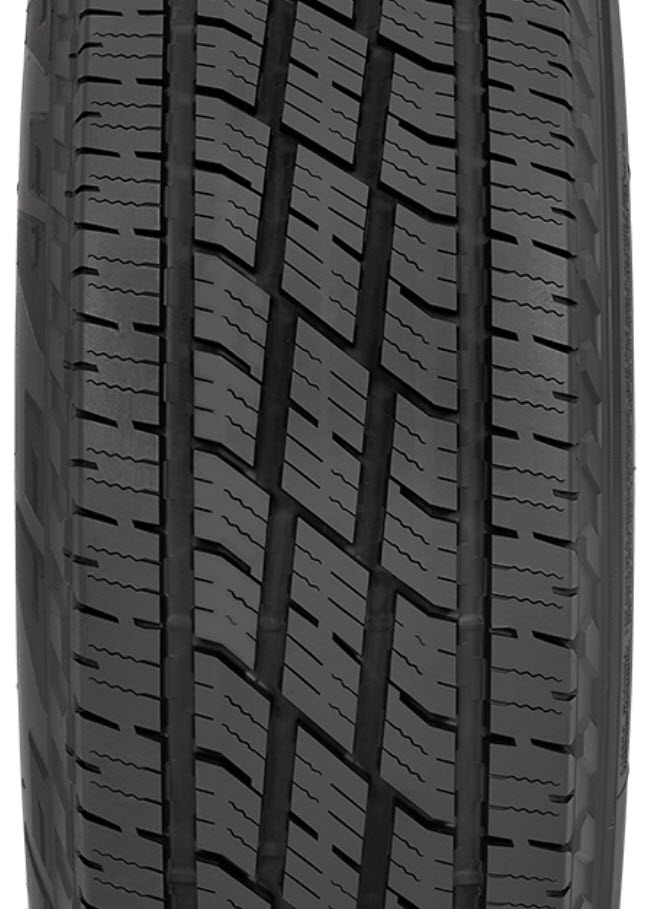

MULTI-WAVE SIPES
EXPANDING SHOULDER GROOVES

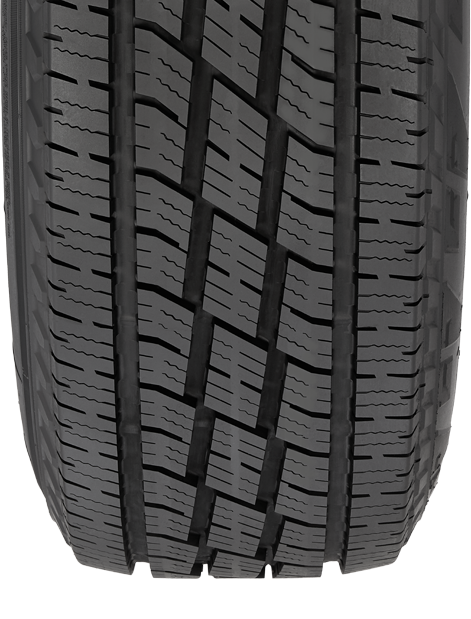

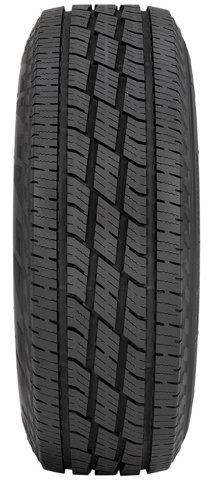

FOUR WIDE CIRCUMFERENTIAL GROOVES
ADAPTIVE CIRCUMFERENTIAL GROOVES

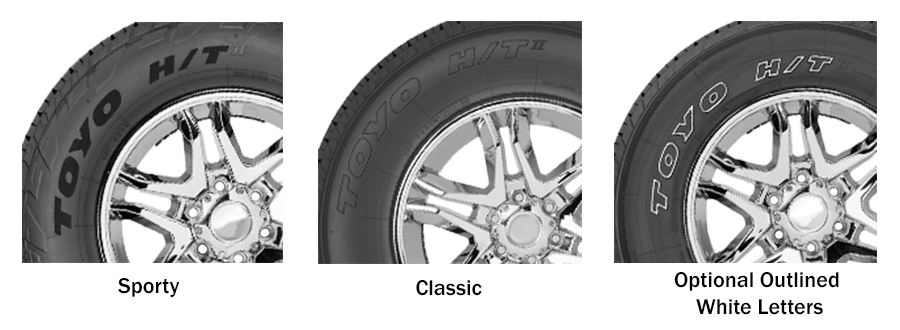

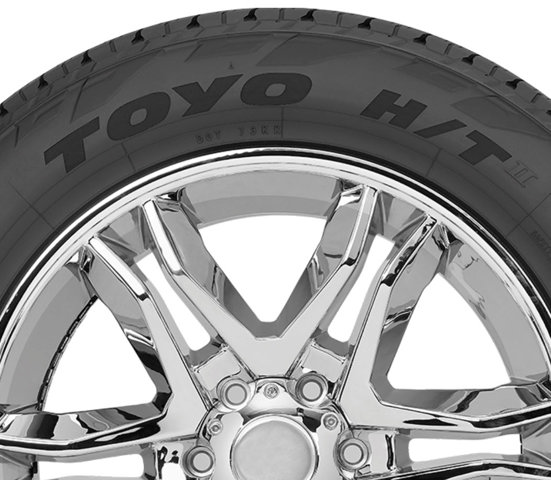

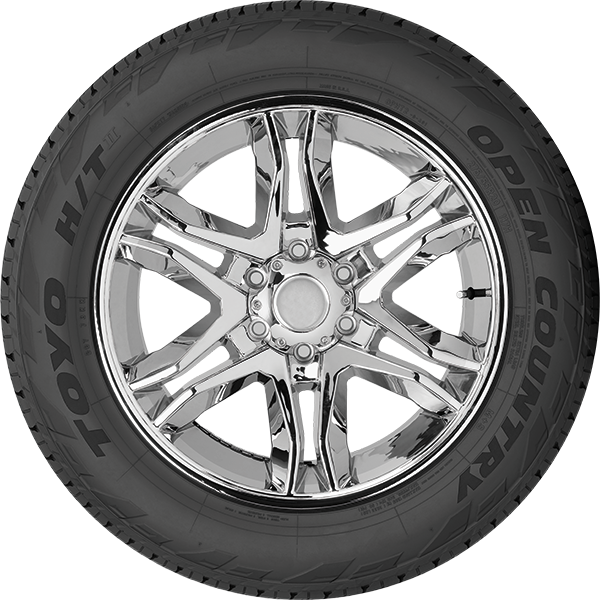

DUAL SIDEWALL DESIGNS
Reviews from Toyo Owners
Close
Performance ratings
Tread Life
Quiet Ride
Wet Handling
Dry Handling
Ride Comfort
Winter Handling
Fuel Efficiency
Off-Road TractionPerformance Ratings are on a scale of 1 to 5 (best) in 0.5-point increments and can be compared within applicable Toyo product categories. Compare this tire to others suitable for your vehicle using our Tire Finder.
Close
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|
Sizes & Specifications
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 235/75R15 | Load / Speed109T | Load IDXL | SidewallOWL | Tread Depth (1/32")11.8 | Product Code364720 | Approved Rim Width Range (in.)6.0-6.5-8.0 | Weight (lbs.)33 | Inflated Overall Diameter (in.)28.9 | Inflated Overall Width (in.)9.3 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A B | Revs Per Mile720 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 215/70R16 | Load / Speed100H | Load IDSL | SidewallBSW | Tread Depth (1/32")11.5 | Product Code364500 | Approved Rim Width Range (in.)5.5-6.5-7.0 | Weight (lbs.)27 | Inflated Overall Diameter (in.)27.9 | Inflated Overall Width (in.)8.7 | Max Load Single / Dual (lbs.)1764/- | Max Pressure Single / Dual (PSI)51/- | UTQG740 A A | Revs Per Mile745 |
| LT215/85R16 | Load / Speed115/112S | Load IDE | SidewallBSW | Tread Depth (1/32")14.2 | Product Code364290 | Approved Rim Width Range (in.)5.5-6.0-7.0 | Weight (lbs.)38 | Inflated Overall Diameter (in.)30.4 | Inflated Overall Width (in.)8.5 | Max Load Single / Dual (lbs.)2680/2470 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile683 |
| LT225/75R16 | Load / Speed115/112S | Load IDE | SidewallBSW | Tread Depth (1/32")14.1 | Product Code364250 | Approved Rim Width Range (in.)6.0-7.0 | Weight (lbs.)38 | Inflated Overall Diameter (in.)29.3 | Inflated Overall Width (in.)8.8 | Max Load Single / Dual (lbs.)2680/2470 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile709 |
| 235/70R16 | Load / Speed109T | Load IDXL | SidewallOWL | Tread Depth (1/32")11.7 | Product Code364530 | Approved Rim Width Range (in.)6.0-7.0-8.0 | Weight (lbs.)31 | Inflated Overall Diameter (in.)29.0 | Inflated Overall Width (in.)9.4 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A B | Revs Per Mile717 |
| LT235/85R16 | Load / Speed120/116S | Load IDE | SidewallOWL | Tread Depth (1/32")14.5 | Product Code364280 | Approved Rim Width Range (in.)6.0-6.5-7.5 | Weight (lbs.)44 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)9.3 | Max Load Single / Dual (lbs.)3042/2780 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile655 |
| 245/70R16 | Load / Speed107T | Load IDSL | SidewallOWL | Tread Depth (1/32")11.8 | Product Code364690 | Approved Rim Width Range (in.)6.5-7.0-8.0 | Weight (lbs.)33 | Inflated Overall Diameter (in.)29.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)2149/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile704 |
| 245/75R16 | Load / Speed111T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.0 | Product Code364700 | Approved Rim Width Range (in.)6.5-7.0-8.0 | Weight (lbs.)33 | Inflated Overall Diameter (in.)30.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)2403/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile682 |
| LT245/75R16 | Load / Speed120/116S | Load IDE | SidewallOWL | Tread Depth (1/32")14.4 | Product Code364240 | Approved Rim Width Range (in.)6.5-7.0-8.0 | Weight (lbs.)42 | Inflated Overall Diameter (in.)30.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)3042/2778 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile682 |
| 255/70R16 | Load / Speed111T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.0 | Product Code364640 | Approved Rim Width Range (in.)6.5-7.5-8.5 | Weight (lbs.)36 | Inflated Overall Diameter (in.)30.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)2403/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile691 |
| 265/70R16 | Load / Speed112T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.1 | Product Code364510 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)38 | Inflated Overall Diameter (in.)30.6 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2469/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile678 |
| 265/70R16 | Load / Speed112T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.1 | Product Code364520 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)38 | Inflated Overall Diameter (in.)30.6 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2469/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile678 |
| 265/75R16 | Load / Speed116T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.2 | Product Code364730 | Approved Rim Width Range (in.)7.0-7.5-9.0 | Weight (lbs.)40 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.5 | Max Load Single / Dual (lbs.)2756/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile656 |
| LT265/75R16 | Load / Speed123/120S | Load IDE | SidewallOWL | Tread Depth (1/32")14.6 | Product Code364310 | Approved Rim Width Range (in.)7.0-7.5-8.0 | Weight (lbs.)49 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.5 | Max Load Single / Dual (lbs.)3415/3085 | Max Pressure Single / Dual (PSI)80/80 | UTQG- | Revs Per Mile656 |
| LT285/75R16 | Load / Speed126/123S | Load IDE | SidewallOWL | Tread Depth (1/32")15.8 | Product Code364410 | Approved Rim Width Range (in.)7.5-8.0-9.0 | Weight (lbs.)56 | Inflated Overall Diameter (in.)32.8 | Inflated Overall Width (in.)11.3 | Max Load Single / Dual (lbs.)3750/3415 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile633 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 225/65R17 | Load / Speed102H | Load IDSL | SidewallBSW | Tread Depth (1/32")11.5 | Product Code364450 | Approved Rim Width Range (in.)6.0-6.5-8.0 | Weight (lbs.)31 | Inflated Overall Diameter (in.)28.5 | Inflated Overall Width (in.)9.0 | Max Load Single / Dual (lbs.)1874/- | Max Pressure Single / Dual (PSI)51/- | UTQG740 A A | Revs Per Mile729 |
| 235/65R17 | Load / Speed104T | Load IDSL | SidewallBSW | Tread Depth (1/32")11.6 | Product Code364460 | Approved Rim Width Range (in.)6.5-7.0-8.5 | Weight (lbs.)33 | Inflated Overall Diameter (in.)29.1 | Inflated Overall Width (in.)9.4 | Max Load Single / Dual (lbs.)1984/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile715 |
| 235/70R17 | Load / Speed109T | Load IDXL | SidewallOWL | Tread Depth (1/32")11.7 | Product Code364710 | Approved Rim Width Range (in.)6.0-7.0-8.0 | Weight (lbs.)33 | Inflated Overall Diameter (in.)30.0 | Inflated Overall Width (in.)9.4 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A B | Revs Per Mile692 |
| 235/75R17 | Load / Speed109T | Load IDSL | SidewallOWL | Tread Depth (1/32")11.8 | Product Code364660 | Approved Rim Width Range (in.)6.0-6.5-8.0 | Weight (lbs.)35 | Inflated Overall Diameter (in.)30.9 | Inflated Overall Width (in.)9.3 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile673 |
| LT235/80R17 | Load / Speed120/117S | Load IDE | SidewallBSW | Tread Depth (1/32")14.4 | Product Code364300 | Approved Rim Width Range (in.)6.0-6.5-7.5 | Weight (lbs.)45 | Inflated Overall Diameter (in.)31.8 | Inflated Overall Width (in.)9.3 | Max Load Single / Dual (lbs.)3085/2835 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile653 |
| 245/65R17 | Load / Speed107H | Load IDSL | SidewallBSW | Tread Depth (1/32")11.7 | Product Code364490 | Approved Rim Width Range (in.)7.0-8.5 | Weight (lbs.)34 | Inflated Overall Diameter (in.)29.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)2149/- | Max Pressure Single / Dual (PSI)51/- | UTQG740 A A | Revs Per Mile704 |
| 245/70R17 | Load / Speed110T | Load IDSL | SidewallOWL | Tread Depth (1/32")11.8 | Product Code364540 | Approved Rim Width Range (in.)6.5-7.0-8.0 | Weight (lbs.)35 | Inflated Overall Diameter (in.)30.6 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)2337/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile680 |
| LT245/70R17 | Load / Speed119/116S | Load IDE | SidewallOWL | Tread Depth (1/32")14.2 | Product Code364340 | Approved Rim Width Range (in.)6.5-7.0-8.0 | Weight (lbs.)43 | Inflated Overall Diameter (in.)30.6 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)3000/2755 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile680 |
| LT245/75R17 | Load / Speed121/118S | Load IDE | SidewallBSW | Tread Depth (1/32")14.4 | Product Code364220 | Approved Rim Width Range (in.)6.5-7.0-7.5 | Weight (lbs.)44 | Inflated Overall Diameter (in.)31.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile660 |
| LT245/75R17 | Load / Speed121/118S | Load IDE | SidewallOWL | Tread Depth (1/32")14.4 | Product Code364230 | Approved Rim Width Range (in.)6.5-7.0-7.5 | Weight (lbs.)44 | Inflated Overall Diameter (in.)31.5 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile660 |
| 255/65R17 | Load / Speed110T | Load IDSL | SidewallOWL | Tread Depth (1/32")11.8 | Product Code364630 | Approved Rim Width Range (in.)7.0-7.5-9.0 | Weight (lbs.)36 | Inflated Overall Diameter (in.)30.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)2337/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile691 |
| 255/70R17 | Load / Speed112T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.0 | Product Code364600 | Approved Rim Width Range (in.)6.5-7.5-8.5 | Weight (lbs.)35 | Inflated Overall Diameter (in.)31.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)2469/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile668 |
| 265/65R17 | Load / Speed112T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.0 | Product Code364550 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)38 | Inflated Overall Diameter (in.)30.6 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2469/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile680 |
| 265/70R17 | Load / Speed115T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.1 | Product Code364430 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)41 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2679/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile656 |
| 265/70R17 | Load / Speed115T | Load IDSL | SidewallOWL | Tread Depth (1/32")12.1 | Product Code364440 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)40 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2679/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile656 |
| LT265/70R17 | Load / Speed121/118S | Load IDE | SidewallOWL | Tread Depth (1/32")14.5 | Product Code364260 | Approved Rim Width Range (in.)7.0-8.0-8.5 | Weight (lbs.)47 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile656 |
| LT265/70R17 | Load / Speed121/118S | Load IDE | SidewallBSW | Tread Depth (1/32")14.5 | Product Code364270 | Approved Rim Width Range (in.)7.0-8.0-8.5 | Weight (lbs.)49 | Inflated Overall Diameter (in.)31.7 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile656 |
| LT285/70R17 | Load / Speed121/118S | Load IDE | SidewallOWL | Tread Depth (1/32")15.8 | Product Code364360 | Approved Rim Width Range (in.)7.5-8.5-9.0 | Weight (lbs.)53 | Inflated Overall Diameter (in.)32.8 | Inflated Overall Width (in.)11.5 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile634 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 235/60R18 | Load / Speed107V | Load IDXL | SidewallBSW | Tread Depth (1/32")10.8 | Product Code369300 | Approved Rim Width Range (in.)6.5-7.0-8.5 | Weight (lbs.)33 | Inflated Overall Diameter (in.)29.1 | Inflated Overall Width (in.)9.4 | Max Load Single / Dual (lbs.)2149/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile714 |
| 235/65R18 | Load / Speed110V | Load IDXL | SidewallBSW | Tread Depth (1/32")11.0 | Product Code369320 | Approved Rim Width Range (in.)6.5-7.0-8.5 | Weight (lbs.)34 | Inflated Overall Diameter (in.)30.0 | Inflated Overall Width (in.)9.4 | Max Load Single / Dual (lbs.)2337/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile692 |
| 245/60R18 | Load / Speed109V | Load IDXL | SidewallBSW | Tread Depth (1/32")11.0 | Product Code369310 | Approved Rim Width Range (in.)7.0-8.5 | Weight (lbs.)35 | Inflated Overall Diameter (in.)29.6 | Inflated Overall Width (in.)9.8 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile703 |
| 255/65R18 | Load / Speed111T | Load IDSL | SidewallBSW | Tread Depth (1/32")11.8 | Product Code364570 | Approved Rim Width Range (in.)7.0-7.5-9.0 | Weight (lbs.)38 | Inflated Overall Diameter (in.)31.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)2403/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile669 |
| 255/70R18 | Load / Speed113S | Load IDSL | SidewallBSW | Tread Depth (1/32")12.0 | Product Code364740 | Approved Rim Width Range (in.)6.5-7.5-8.5 | Weight (lbs.)41 | Inflated Overall Diameter (in.)32.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)2535/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile647 |
| LT255/65R18 | Load / Speed120/117R | Load IDE | SidewallBSW | Tread Depth (1/32")14.2 | Product Code364420 | Approved Rim Width Range (in.)7.0-7.5-9.0 | Weight (lbs.)48 | Inflated Overall Diameter (in.)31.1 | Inflated Overall Width (in.)10.2 | Max Load Single / Dual (lbs.)3085/2835 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile669 |
| 265/60R18 | Load / Speed110T | Load IDSL | SidewallBSW | Tread Depth (1/32")11.8 | Product Code364560 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)39 | Inflated Overall Diameter (in.)30.5 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2337/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile681 |
| 265/65R18 | Load / Speed114T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.0 | Product Code364610 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)39 | Inflated Overall Diameter (in.)31.5 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2601/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile659 |
| 265/70R18 | Load / Speed116T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.1 | Product Code364620 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)43 | Inflated Overall Diameter (in.)32.6 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)2756/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile636 |
| 275/65R18 | Load / Speed116T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.1 | Product Code364470 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)43 | Inflated Overall Diameter (in.)32.1 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)2756/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile647 |
| LT275/65R18 | Load / Speed123/120S | Load IDE | SidewallBSW | Tread Depth (1/32")14.5 | Product Code364320 | Approved Rim Width Range (in.)7.5-8.0-9.0 | Weight (lbs.)52 | Inflated Overall Diameter (in.)32.1 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)3415/3085 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile647 |
| LT275/70R18 | Load / Speed125/122S | Load IDE | SidewallBSW | Tread Depth (1/32")14.6 | Product Code364330 | Approved Rim Width Range (in.)7.0-8.0-8.5 | Weight (lbs.)53 | Inflated Overall Diameter (in.)33.2 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)3640/3305 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile626 |
| 285/60R18 | Load / Speed120V | Load IDXL | SidewallBSW | Tread Depth (1/32")11.5 | Product Code364750 | Approved Rim Width Range (in.)8.0-8.5-10.0 | Weight (lbs.)43 | Inflated Overall Diameter (in.)31.5 | Inflated Overall Width (in.)11.5 | Max Load Single / Dual (lbs.)3086/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile660 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 255/50R20 | Load / Speed109H | Load IDXL | SidewallBSW | Tread Depth (1/32")10.8 | Product Code364670 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)37 | Inflated Overall Diameter (in.)30.1 | Inflated Overall Width (in.)10.4 | Max Load Single / Dual (lbs.)2271/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile691 |
| 255/55R20 | Load / Speed110H | Load IDXL | SidewallBSW | Tread Depth (1/32")11.0 | Product Code364650 | Approved Rim Width Range (in.)7.0-8.0-9.0 | Weight (lbs.)42 | Inflated Overall Diameter (in.)31.0 | Inflated Overall Width (in.)10.4 | Max Load Single / Dual (lbs.)2337/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile670 |
| 265/50R20 | Load / Speed107T | Load IDSL | SidewallBSW | Tread Depth (1/32")11.6 | Product Code364580 | Approved Rim Width Range (in.)7.5-8.5-9.5 | Weight (lbs.)39 | Inflated Overall Diameter (in.)30.5 | Inflated Overall Width (in.)10.9 | Max Load Single / Dual (lbs.)2149/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile682 |
| LT265/60R20 | Load / Speed121/118S | Load IDE | SidewallBSW | Tread Depth (1/32")14.2 | Product Code364370 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)53 | Inflated Overall Diameter (in.)32.5 | Inflated Overall Width (in.)10.7 | Max Load Single / Dual (lbs.)3195/2910 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile639 |
| 275/55R20 | Load / Speed117H | Load IDXL | SidewallBSW | Tread Depth (1/32")11.2 | Product Code364480 | Approved Rim Width Range (in.)7.5-8.5-9.5 | Weight (lbs.)43 | Inflated Overall Diameter (in.)31.9 | Inflated Overall Width (in.)11.2 | Max Load Single / Dual (lbs.)2833/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile651 |
| 275/60R20 | Load / Speed115T | Load IDSL | SidewallBSW | Tread Depth (1/32")12.0 | Product Code364680 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)44 | Inflated Overall Diameter (in.)33.0 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)2679/- | Max Pressure Single / Dual (PSI)44/- | UTQG740 A B | Revs Per Mile630 |
| LT275/60R20 | Load / Speed123/120R | Load IDE | SidewallBSW | Tread Depth (1/32")14.4 | Product Code364350 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)55 | Inflated Overall Diameter (in.)33.0 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)3415/3085 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile630 |
| LT275/65R20 | Load / Speed126/123S | Load IDE | SidewallBSW | Tread Depth (1/32")14.5 | Product Code364390 | Approved Rim Width Range (in.)7.5-8.0-9.5 | Weight (lbs.)57 | Inflated Overall Diameter (in.)34.1 | Inflated Overall Width (in.)11.0 | Max Load Single / Dual (lbs.)3750/3415 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile609 |
| 285/50R20 | Load / Speed112V | Load IDSL | SidewallBSW | Tread Depth (1/32")11.2 | Product Code364760 | Approved Rim Width Range (in.)8.0-9.0-10.0 | Weight (lbs.)45 | Inflated Overall Diameter (in.)31.3 | Inflated Overall Width (in.)11.7 | Max Load Single / Dual (lbs.)2469/- | Max Pressure Single / Dual (PSI)51/- | UTQG740 A A | Revs Per Mile665 |
| LT285/60R20 | Load / Speed125/122R | Load IDE | SidewallBSW | Tread Depth (1/32")15.8 | Product Code364380 | Approved Rim Width Range (in.)8.0-8.5-10.0 | Weight (lbs.)59 | Inflated Overall Diameter (in.)33.5 | Inflated Overall Width (in.)11.5 | Max Load Single / Dual (lbs.)3640/3305 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile621 |
| LT285/65R20 | Load / Speed127/124R | Load IDE | SidewallBSW | Tread Depth (1/32")15.8 | Product Code364400 | Approved Rim Width Range (in.)8.0-8.5-10.0 | Weight (lbs.)60 | Inflated Overall Diameter (in.)34.6 | Inflated Overall Width (in.)11.5 | Max Load Single / Dual (lbs.)3860/3525 | Max Pressure Single / Dual (PSI)80/80 | UTQGN/A | Revs Per Mile601 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 275/50R21 | Load / Speed113V | Load IDXL | SidewallBSW | Tread Depth (1/32")11.1 | Product Code364780 | Approved Rim Width Range (in.)7.5-8.5-9.5 | Weight (lbs.)40 | Inflated Overall Diameter (in.)31.9 | Inflated Overall Width (in.)11.2 | Max Load Single / Dual (lbs.)2535/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile652 |
| Tire Size | Load / Speed | Load ID | Sidewall | Tread Depth (1/32") | Product Code | Approved Rim Width Range (in.) | Weight (lbs.) | Inflated Overall Diameter (in.) | Inflated Overall Width (in.) | Max Load Single / Dual (lbs.) | Max Pressure Single / Dual (PSI) | UTQG | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 275/50R22 | Load / Speed111H | Load IDSL | SidewallBSW | Tread Depth (1/32")11.1 | Product Code364770 | Approved Rim Width Range (in.)7.5-8.5-9.5 | Weight (lbs.)45 | Inflated Overall Diameter (in.)32.9 | Inflated Overall Width (in.)11.2 | Max Load Single / Dual (lbs.)2403/- | Max Pressure Single / Dual (PSI)51/- | UTQG740 A A | Revs Per Mile632 |
| 285/45R22 | Load / Speed114H | Load IDXL | SidewallBSW | Tread Depth (1/32")11.1 | Product Code364590 | Approved Rim Width Range (in.)9.0-9.5-10.5 | Weight (lbs.)42 | Inflated Overall Diameter (in.)32.1 | Inflated Overall Width (in.)11.2 | Max Load Single / Dual (lbs.)2601/- | Max Pressure Single / Dual (PSI)50/- | UTQG740 A A | Revs Per Mile647 |
Sizes and specifications legend
Speed Rating
Load ID
- SL = Standard Load
- XL = Extra Load
- LL = Low Load
- RD = Reinforced
- C = 6-ply rating
- D = 8-ply rating
- E = 10-ply rating
- F = 12-ply rating
Sidewall
- BSW = Black Sidewall
- OWL = Outlined White Letters
Approved Rim Width Range
Bold designates
measuring rim width.
WARRANTY
The Open Country H/T II comes with the following treadwear warranty plus our limited warranty.
See the warranty booklet for details.
- P/Euro-Metric Sizes: 70,000 miles
- LT Sizes: 50,000 miles
TRIAL OFFER
Buy 'em, try 'em, love 'em. If you are not completely satisfied after 500-miles or 45-days, we'll take them back.
