Increased tread, limited void area and groove arrangement improves traction in wet and dry conditions.
Tread depth indicators: circles in tread indicate tread depth; full 8/32nds tread depth provide good wet traction.
Competition

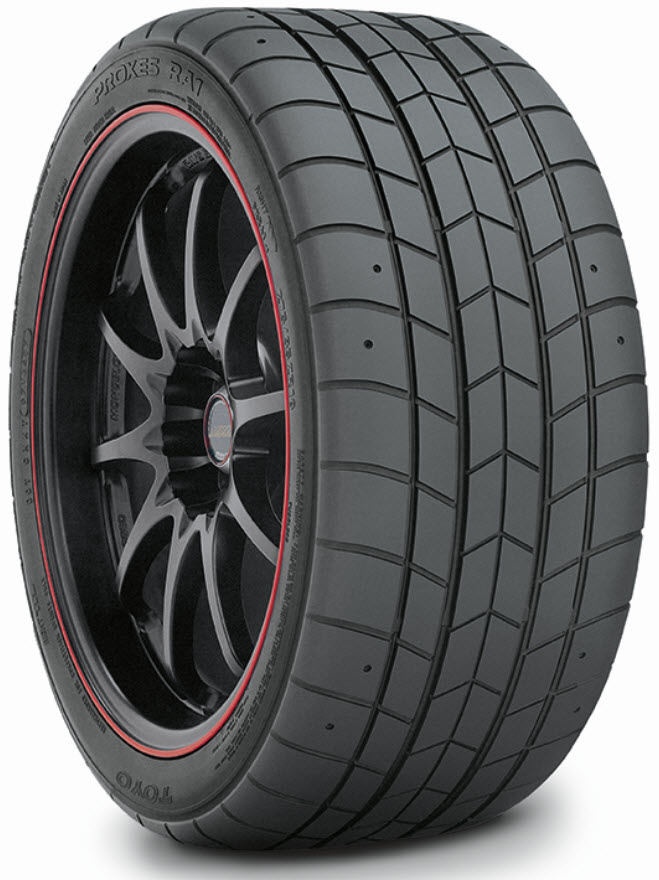

DOT Competition Tire
The design and components of the Proxes RA1 came from our experiences winning races all over the world. This DOT competition tire* is well-known by road racers for delivering quick lap times, consistency and long wear.
*Caution: Recommended for competition events only.
Does this tire fit my vehicle?Warranty
The Proxes RA1 is covered by Toyo Tires' limited warranty. See warranty page for complete details.
Performance Ratings*
Video:
Soft But Durable R-Compound
- Improves grip for better competitive handling and performance.

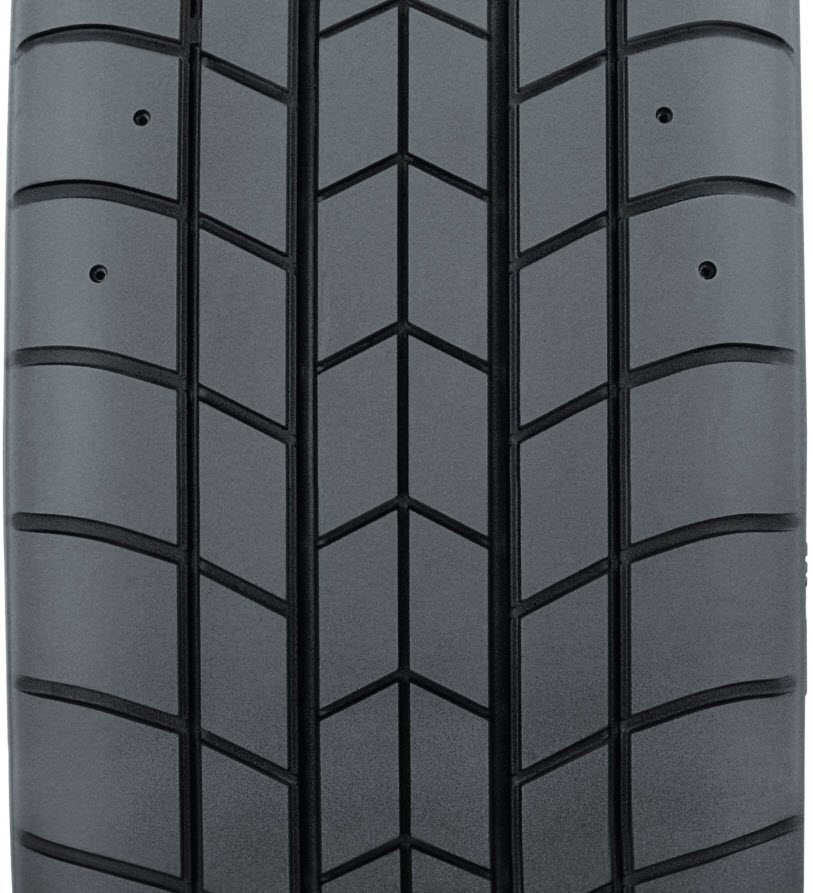

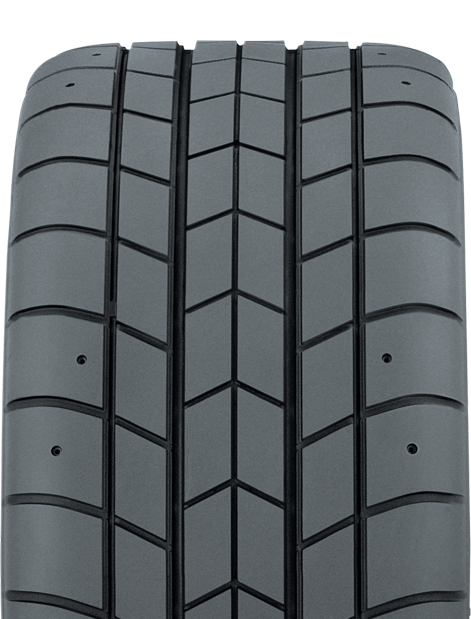

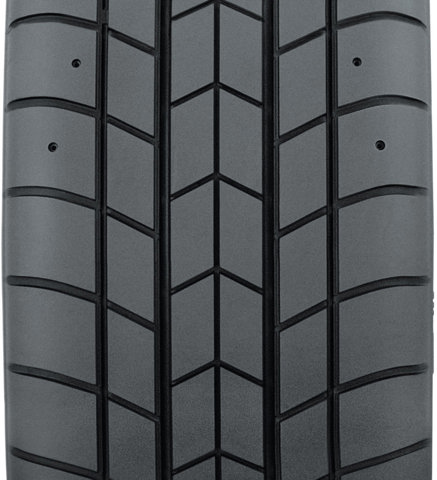

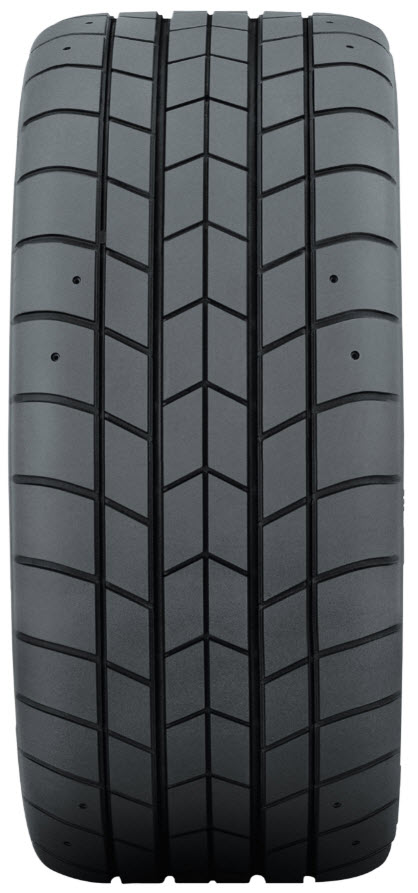

Stepped Tread Design
- Increased tread area and limited void improves dry traction.
- Groove arrangement assists with wet traction.
Tread depth indicators
- Circles in tread indicate tread depth.
- Full 8/32nds tread depth provides good competitive wet traction.
- Shaving to 6/32nds improves dry traction.
Print Complete| Tire Size | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Tread Depth (1/32") | Tire Weight (lbs.) | Max Load Single | Max PSI Single | Revs/Mile | Static Load Radius | UTQG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 205/60R13 86V | 236700 | 5.5-6.0-7.5 | 22.7 | 8.2 | 8 | 20 | 1158 | 44 | 970 | 10.4 | 100 AA A |
| 205/50ZR15 | 236840 | 5.5-6.5-7.5 | 23.1 | 8.4 | 8 | 20 | 1135 | 44 | 917 | 10.6 | 100 AA A |
| 225/45ZR15 | 236970 | 7.0-7.5-8.5 | 22.9 | 9 | 8 | 23 | 1201 | 44 | 908 | 10.6 | 100 AA A |
| 225/50ZR15 | 236830 | 6.0-7.0-8.0 | 23.9 | 9.2 | 8 | 23 | 1323 | 44 | 886 | 10.9 | 100 AA A |
| 225/50ZR16 | 236890 | 6.0-7.0-8.0 | 24.9 | 9.2 | 8 | 23 | 1390 | 44 | 853 | 11.2 | 100 AA A |
| 245/45ZR16 | 236800 | 7.5-8.0-9.0 | 24.7 | 9.6 | 8 | 25 | 1477 | 44 | 861 | 11.2 | 100 AA A |
| P255/50ZR16 | 236880 | 7.0-8.0-9.0 | 26.1 | 10.4 | 8 | 27 | 1687 | 44 | 815 | 11.7 | 100 AA A |
| 235/40ZR17 | 236760 | 8.0-8.5-9.5 | 24.4 | 9.6 | 8 | 24 | 1323 | 44 | 852 | 11.4 | 100 AA A |
| 255/40ZR17 | 236770 | 8.5-9.0-10.0 | 25 | 10.4 | 8 | 26 | 1477 | 44 | 828 | 11.7 | 100 AA A |
| 275/40ZR17 | 236780 | 9.0-9.5-11.0 | 25.7 | 10.9 | 8 | 29 | 1653 | 44 | 812 | 11.9 | 100 AA A |
| 275/35ZR18 | 236710 | 9.0-9.5-11.0 | 25.6 | 10.9 | 8 | 30 | 1521 | 44 | 812 | 12 | 100 AA A |
Race-prepared vehicles such as
BMW e30
Mazda Miata MX-5
Porsche Boxster
Porsche 944
Honda CRX
Honda Civic
Honda S2000
Toyo Tires recommends the following general set up guidelines for the Proxes RA1:
- Operating Temperature: 160°F to 220°F
- Hot Inflation Pressures: High 30s to Low 40s (psi)
- Camber: -2.5° to -5.0°
- Caster: As much positive as possible
For recommendations on proper use, handling and storage of this tire in colder climates, please click here.
